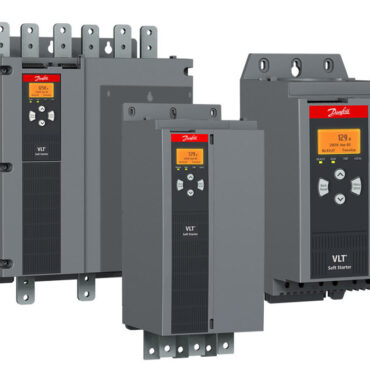

VLT Soft Starters MCD 600

VLT Soft Starters:-

Superior Soft Start performance for fixed-speed applications

The VLT Soft Starter MCD 600 combines the latest in advanced controls and protections with an increased level of intelligence for superior performance in fixed-speed applications.

MCD 600 combines the latest in advanced controls and protections with an increased level of intelligence for superior performance in fixed-speed applications.

An integrated bypass ensures both extremely high efficiency and harmonic-free operation at full speed, reducing energy consumed and required cooling capacity. Ease of use is in focus with features such as the pump-clean function, PowerThrough operation, and calendar or run time-based scheduling. More extensive motor and starter protections ensure more uptime.

Mains voltage range

  • 3 x 200-525 VAC (T5)
  • 3 x 380-690 VAC (T7)

Current range and enclosure

  • IP00: 144 – 1250 A (Nominal)
  • IP20: 20 – 129 A (Nominal)
  • Download PDF
  • VLT Soft Start Controller MCD 100
  • VLT Compact Starter MCD 201 and MCD 202
  • VLT Soft Starter MCD 500
  • Inbuilt impeller cleaning assistance with Pump clean functionality
  • Easy application analysis with up to 348 events logged
  • More reliability, more uptime with expanded motor and controller protections
  • Flexibility for low speed applications, with Jog function
  • Improved uptime with PowerThrough function which uses 2-phase control
  • Programming is quick and easy thanks to three menu systems
  • Installation costs are lower
  • Good asset protection thanks to Emergency mode

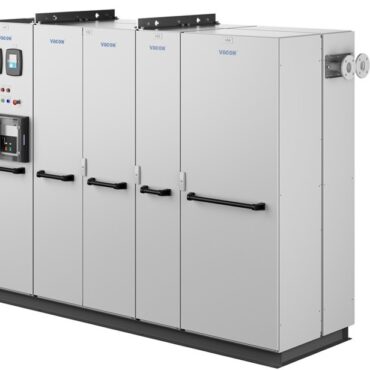

VACON NXP Liquid Cooled Enclosed Drive

Enclosed Drive

Liquid-cooled AC drives can be used in many combinations, from a single dedicated frequency converter to large-scale common DC bus systems. Packed with features, these fully standardized enclosed drives maximize the utilization of space while minimizing overall lifecycle costs.

Thanks to the high degree of protection (IP54), these drives can be installed almost anywhere in a plant or on a vessel. This eliminates the load on air-conditioning systems in electrical rooms reducing costs and installation time, and makes them ideal for retrofitting.

Servicing is fast and easy. Features such as safe torque off (STO) and safe stop 1 (SS1) improve safety, and conformal coated circuit boards enhance reliability.

NXA, NXN, NXB and NXI configurations
Active Front-end (NXA), Non-regenerative Front-end (NXN), Brake Chopper (NXB) and Inverter (NXI) configurations are available.

  • 3 x 400-500 V…700-1100 kW
  • 3 x 525-690 V…800-1550 kW
  • Download PDF
  • VACON NXC
  • VACON NXP System Drive
  • Drive lifetime and reliability
  • Floor space requirements
  • Investment savings as no large air-conditioning systems are needed
  • Fulfills all relevant international standards and global requirements
  • Virtually silent operation as no large cooling fans are needed

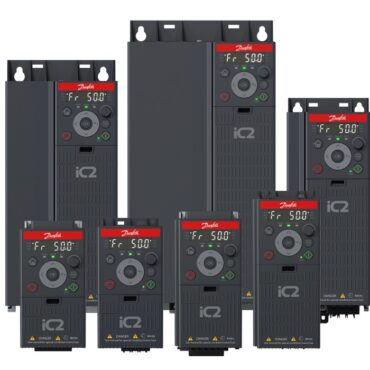

iC2-Micro

Low Voltage Drive :-

Performance that pays off

This quality general purpose drive is a perfect match for a wide range of applications. iC2-Micro performs with unsurpassed reliability even in complex applications. It gives you user-friendliness, condensed functionality, and easy commissioning, all in a powerful compact package.

More compact, intelligent, and powerful than its predecessor, the iC2-Micro is designed as an easy replacement for VLT Micro Drive FC 51. This reliable and durable drive is even easier to use and install. You can reduce system complexity and cost whilst maintaining full performance.

This drive gives you excellent motor control and mechanical brake performance. New features include torque open loop control, locked motor detection, permanent magnet motor control, built-in control panel and, of course, connectivity with our MyDrive Suite digital tools.

  • 1 x 200-240 V … 0.37-2.2 kW
  • 3 x 380-480 V … 0.37-22 kW
  • Download PDF
  • Fast and accurate installation
  • Fast commissioning thanks to application wizards
  • High reliability
  • Cost-effective and space-efficient
  • Compatible with all typical motor technologies
  • Optional external control panel provides extra features to ease commissioning

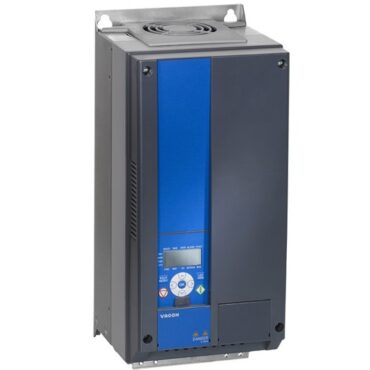

VACON 20

Low Voltage Drive :-

Built-in functionality for enhanced control

Although extremely compact in size, the VACON 20 is packed with functionality to help improve system performance and cost efficiency.

Fast installation and set-up are possible due to easy-access terminals, integral DIN rail mounting and the parameter copying tool which can clone settings without needing mains power. The parameter list can be freely modified and application-specific parameter sets and default settings can be created. PLC functionality means individual control logic can be built into the drive and unused I/O options can be used for other machine-related tasks.

The built-in RS-485 interface provides a cost-effective and simple serial-control interface for the drive. With optional modules, VACON 20 can be connected to almost any fieldbus system based on RS-485 or Ethernet, including Profibus DP, CANOpen, DeviceNet, Profinet I/O, EtherCAT, Modbus TCP/IP and Ethernet IP.

Available in all common voltages and in a wide power range, VACON 20 optimizes the performance of, for example, vertical-movement, packaging, material-handling and flow-control applications in various process industries around the globe.

  • 1 x 115 V…0.25-1.1 kW
  • 1 x 208-240 V…0.25-2.2 kW
  • 3 x 208-240 V…0.25-11 kW
  • 3 x 380-480 V…0.37-18.5 kW
  • Download PDF
  • VACON 20
  • VACON 100 FLOW
  • VACON 100 Industrial
  • VACON 20 Cold Plate
  • VACON NXP Air Cooled
  • Individual and customized control due to built-in PLC functionality
  • Optimized performance in demanding environments thanks to unique passive cooling system
  • Fits into the tightest of spaces due to its slender economical design
  • Supports asynchronous induction as well as permanent magnet synchronous motors
  • Dedicated functionality to improve flow control in building-automation applications

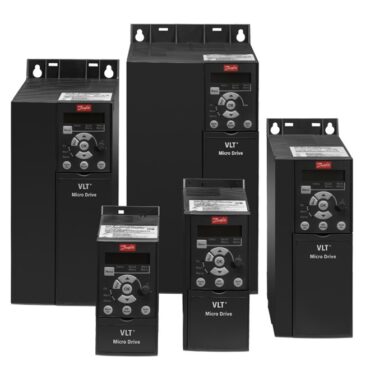

VLT Micro Drive

Low Voltage Drive :-

Maximum strength with reduced installation costs

The VLT® Micro Drive FC 51 is small and yet powerful and built to last. Panel space can be saved and installation costs reduced thanks to its compact size and minimal commissioning requirements.

Despite its compact size and easy commissioning, the VLT® Micro Drive can be set up to perform perfectly even in complex applications. It is supported by guided programming of specific functions and the use of a PC software tool for parameterizing. And, thanks to its coated PCBs, the drive ensures reliable and cost-effective operation also in demanding environments.

  • 1 x 200-240 V…0.18-2.2 kW
  • 3 x 200-240 V…0.25-3.7 kW
  • 3 x 380-480 V..0.37-22 kW
  • Download PDF
  • VLT Micro Drive FC 51
  • VLT AutomationDrive FC 301 / FC 302
  • VLT AutomationDrive FC 360
  • VLT HVAC Drive FC 102
  • VLT Refrigeration Drive FC 103
  • VLT AQUA Drive FC 202
  • VLT® Midi Drive FC 280
  • VLT® Lift Drive LD 302
  •
  • Side-by-side mounting without derating is possible thanks to the compact, book-style design
  • Penetration of dust is minimized thanks to coated PCBs
  • Radio disturbance from motor cables is limited due to built-in RFI filters
  • Lifetime of the drive is extended and reliability improved as a result of the effective heat sink that removes heat from the electronics
  • Energy consumption can be reduced as kinetic energy in the application can be transformed into braking power to slow down the motor

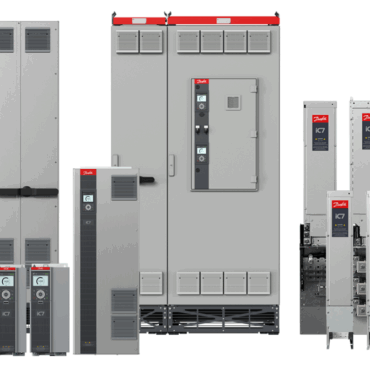

iC7 Drives

Low Voltage Drive :-

Want to manage highly dynamic load cycles in harsh conditions?

Whatever the environment, the iC7-Automation delivers the reliability and performance you need. With connectivity, security and intelligence, this drive lets you take advantage of the latest in Industrial IoT.

iC7-Automation gives you a whole new way to optimize your system with selectable communication protocols and Safe Torque Off (STO) SIL3 as standard. The modular control platform allows you to expand functionality to meet your needs.

  • Enclosed drives: 3 x 380-500 V AC … 200 – 900 kW
  • Frequency converters: 3 x 380-500 V AC … 0.37 – 710 kW
  • Air-cooled system modules: 3 x 380-500 V AC … 200 – 2700 kW
  • Download PDF
