Everest Blowers Products Range

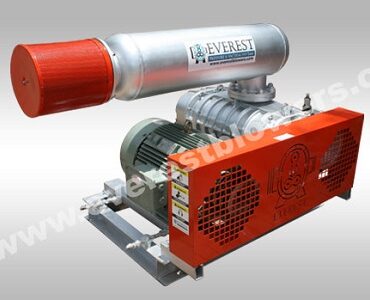

Tri Lobe Air Blower

EVEREST, leading manufacturer of Roots Blowers in India, introduces the all new Tri-Lobe Roots Blowers. Tri-lobe technology means blowers have lobe tips exposed to 120 degrees around the rotor instead of 180 degrees as in a bi-lobe blower. This provides a stiffer rotor set, meaning less deflection at any load. These blowers have been designed keeping the specific demands of the industry of continuous duty operation, sturdy design, reduced noise, reduced pulsations and vibrations, longer bearing life and minimal maintenance in mind. Everest Blowers are produced on the latest state-of-art CNC machines from Haas (USA) and HMT (India), thereby ensuring a quality product. These blowers are designed for continuous duty service. Complete package units are shipped with all essential accessories and electric motor, ready to install, on plug and play concept. An Everest Tri-Lobe blower is supplied with built-in safety & monitoring equipment such as safety relief valve and pressure ga

  • Anti-friction bearings
  • Tri Lobe Rotor design, suitable for both Pressure Duty and Vacuum Duty
  • 100% oil free air delivery
  • Fail safe labyrinth sealing
  • Extended shaft design for cool running
  • Rigid one piece CI casing & end plates
  • Standard Orientation: Right Angle Flow
  • Large inlet & outlet connections for minimal loss
  • Alloy steel toughened shafts ground to close tolerances
  • Factory engineered, Factory guaranteed, superior product
  • Alloy steel hardened and ground timing gears, oil splash lubricated
  • Improved volumetric efficiency and reduced operating temperatures
  • Dynamically balanced rotor shaft assembly (Grade 6.3 ISO 1940-1986)
  • Performance testing as per standard test procedure STP-01 based on BS 1571-2:1975 and ISO 1217:2009
  • Tri-Lobe blower construction having low pulsations and low noise

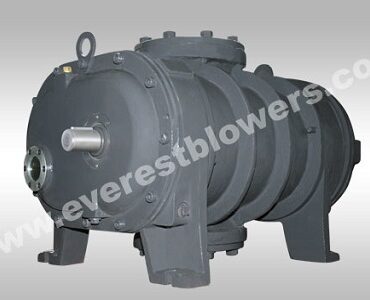

Twin Lobe Air Blower

EVEREST, a leading manufacturer of Air Blowers in India offers twin Lobe air blower available for flow rates from 25 m3/hr to 10,000 m3/hr in single stage & up to any capacity in parallel configuration, for working pressures up to 1 Kg/cm2. Everest Air Blower is a positive displacement machine, which discharge a constant volume of air when operated at a constant speed. These machines are suitable for both pressure and vacuum applications. Pressure is not developed inside the blower but by the demand of the system. Differential pressure, therefore, varies to meet the load conditions and system resistance. Horsepower required is proportional to the differential pressure across the suction and discharge of the blower. The air delivered is 100% oil free. They are extensively used in cement plants, pneumatic conveying systems, effluent treatment plants for aeration, water treatment plants for backwashing of filters, blending of powder material, agitation of chemical solutions, aquaculture, electroplating, etc. Special Biogas~Gas Blowers are also available.

  • 100% oil free air delivery
  • Factory engineered, Factory guaranteed, superior product
  • Alloy steel hardened and ground timing gears, oil splash lubricated
  • Anti-friction bearings
  • Rotary Oil Sealing
  • Rigid one piece CI casing & end plates
  • Horizontal & Vertical configurations available
  • Easy rotor timing setting
  • Air Cooled & Water Cooled design available
  • Fail safe labyrinth sealing
  • Extended shaft design for cool running
  • Dynamically balanced rotor shaft assembly (Grade 6.3 ISO 1940-1986)
  • Large inlet & outlet connections for minimal loss
  • Improved volumetric efficiency and reduced operating temperatures
  • Alloy steel toughened shafts ground to close tolerances
  • Performance testing as per standard test procedure STP-01 based on BS 1571-2:1975 and ISO 1217:2009
