Nolta Products Range

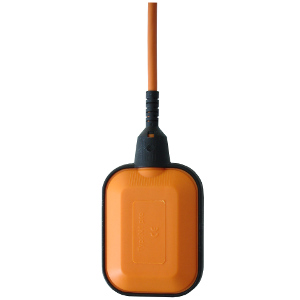

Level Controller N1 pro

The NOLTA Level Regulator N1 pro is the ideal solution to control liquid levels in industrial applications such as:

  • Industrial waste water
  • Emulsion of oils
  • Many chemicals

The NOLTA level regulator N1 pro can be used everywhere where liquid levels must be supervised. The NOLTA N1 pro is ideal for industrial applications. It is simple to install and maintenance-free. Thus fast economical and reliable solutions can be realized.
The N1 pro is equipped with Nolta‘s proResist cable which guarantees extreme durability and resistance. Different than the MS control switches, the N1 pro is a pump switch which can be used for direct control of pumps.
The level controller N1 pro can also be supplied in combination with the NOLTA contactor combination, the NOLTA motorstarter or the NOLTA capacitor plug.



  • Max. temperature: 85 ° C
  • Breaking capacity 10 (8) A / 250V bis 10 (4) A / 400V
  • Switch point 45°
  • Protective system IP 68 / 2 bar
  • Protection class II
  • Cable cross-section 3G1mm2
  • Length /Width / Height 132 / 81 / 43 mm
  • Housing quality Polypropylen (PP)
  • Housing colour Orange
  • Cable quality proResist (TPE/PVC)
  • Cable colour Orange
  • Certificates CE

For direct pump control for example in industrial wastewater, emulsions of oils and fats, diluted acids and brines, aggressive mediums.

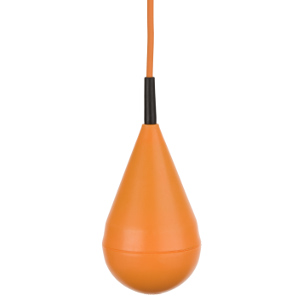

Level Controller MS1

The NIVA level controller MS 1 is the ideal solution to control liquid levels with limited switching space, e. g. in:
Pump stations
Wells
Pump chambers
The NIVA level controller MS 1 is engineered especially for use in sewage works and pumping stations in liquids heavily charged with solid matter such as raw sewage etc. Thanks to the good chemical and thermal properties our level controllers are resistant to lees, uric acid, fecal sewage water, oils, petrol, diesel oil, emulsions, alcohol, fruit acids, and even many chemicals. For use at temperatures up to 80 °C (176 °F)..

  • Max flow: 80 m³/h
  • Head max: 100 m
  • p max: 10 bar
  • Download PDF
  • Blocks of flats
  • Hotels
  • Hospitals
  • Schools
  • Office buildings
  • 2-4 pumps in cascade
  • Plug-and-pump solution
  • Easy to control
  • Low energy consumption
  • Data communication
  • Multimaster function
  • Perfect constant pressure

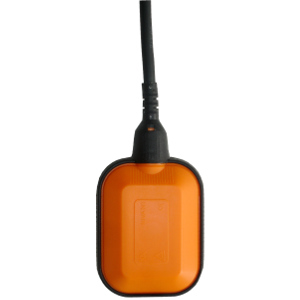

Level Controller N1

The NIVA level controller N1 is the ideal soluti-on to control the level of most diverse liquids, for example in:
Construction site dewatering
Industrial filling plants
Pit draining
The NIVA level controller N 1 can be used everywhere where liquid levels must be supervi- sed. The NIVA N1 is simple to install and maintenance-free. Thus fast economical and relia- ble solutions for your application can be realized. Different to the MS Control switches, the N 1 is a pump switch which can be used for direct control of pumps. The NIVA level con- troller N 1 can be supplied also in combination with the contactor combination, the NOLTA motorstarter or the NOLTA capacitor plug.

Applications

.

  • Max flow: 80 m³/h
  • Head max: 100 m
  • p max: 10 bar
  • Download PDF
  • Blocks of flats
  • Hotels
  • Hospitals
  • Schools
  • Office buildings
  • 2-4 pumps in cascade
  • Plug-and-pump solution
  • Easy to control
  • Low energy consumption
  • Data communication
  • Multimaster function
  • Perfect constant pressure
